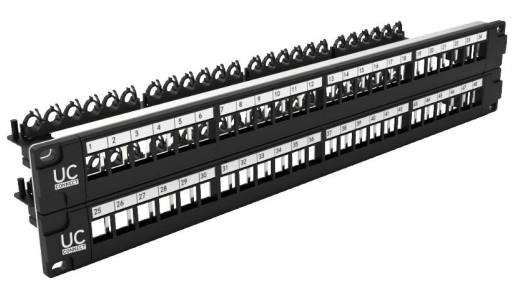

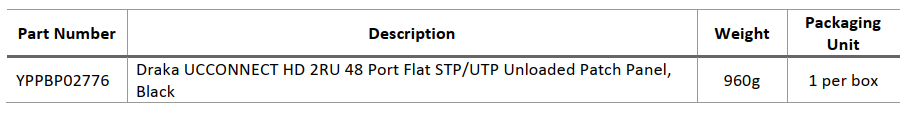

PatchPanel 2RU 48 Port Unloaded
- PatchPanel 2RU 48
- Rack Type : EIA 310D, 19 Inch Rack Mount
- Rack Unit : 2 RU
- Interface, Front : RJ45
- Total Ports : 48 Port
- Compatibility : HD family Keystone Modular jack UTP/STP
- Panel Style : Flat Panel
- Cable Type : Unshielded and Shielded
- Rear Cable Manager : 2 Rows Integrated Individual Smart Clip Lock Rear Cable Management
- Color : Black
PatchCord Cat.5e Dual Boot U/UTP 24AWG 100 MHz
Liên hệ
- Size : 24AWG
- Type : Stranded bare copper
- Type : Solid PE
- Color : Blue/White, Orange/White, Green/White, Brown/White
- Type : LSZH/PVC
- RJ45 Modular Plug : 50 u gold plated contact
- Termination Coding : TIA 568-B
- Plug Housing : UL94V-0 rated clear polycarbonate
- Flame retardant : LSZH: IEC60332-1; IEC60754-1&2; IEC61034; PVC: IEC60332-1
Category 6A
Liên hệ
Category 6a
• Class Ea, link/channel up to 500MHz
• Up to 10GBASE-T, 100m
• Typical 23AWG Solid conductor size
• High alien-Cross-talk performance in higher freq.
• Used primarily in enterprise and datacenters
• Unshielded and Shielded version
• CM and LSZH jacket
Category 6
Liên hệ
Category 6
• Class E, link/channel up to 250MHz
• Up to 10GBASE-T , 55m max.
• Typical 23/24AWG Solid conductor size
• More stringent in Cross-Talk and system noise
• Used primarily in premises & enterprise
• Unshielded and Shielded version
• CM, CMR and LSZH jacket
Category 5e
Liên hệ
Category 5e
• Class D, link/channel up to 100MHz
• Up to 1000BASE-T
• Typical 24AWG Solid conductor size
• 25 watts carrying for POE applications
• Used primarily in premises.
• Unshielded and Shielded version
• PVC and LSZH Jacket
• Outdoor Jacket available
PatchCord Cat.6A Dual Boot U/UTP 24AWG 500 MHz
Liên hệ
- Size: 24AWG
- Type: Stranded bare copper
- Type: PE
- Color: Blue/White, Orange/White, Green/White, Brown/White
- Type: LSZH
- RJ45 Modular Plug: 50 u gold plated contact
- Termination Coding: TIA 568-B
- Plug Housing: UL94V-0 rated clear polycarbonate
- Flame retardant LSZH: IEC60332-1; IEC60754-1&2; IEC61034
KeyStone Category 6A Jack 180 Tool-Less
Liên hệ
- Interface, Front : RJ45
- Interface, Rear : IDC Insulation Displacement Contact
- Cable Type : Unshielded/Shielded Cable
- Panel Cutout : 14.38X16.02 mm
- Termination Tool : Toolless, Not required Termination tool
- Color : Shielded - Metallic, Unshielded - Back, White, Blue, Yellow, Red, Other by request.
PatchCord Cat.6 Dual Boot U/UTP 24AWG 250 MHz
Liên hệ
- Size: 24AWG
- Type: Stranded bare copper, U/UTP
- Type: PE
- Color: Blue/White, Orange/White, Green/White, Brown/White
- Type: LSZH/PVC
- RJ45 Modular Plug: 100 micro-inch nickel plated + 50 micro-inch gold plated contact
- Termination Coding: TIA 568-B
- Plug Housing: UL94V-0 rated clear polycarbonate
- Flame retardant: LSZH: IEC60332-1; IEC60754-1&2; IEC61034; PVC: IEC60332-1
KeyStone Category 6 Jack 180° Tool-Less
Liên hệ
- Interface, Front : RJ45
- Interface, Rear : IDC Insulation Displacement Contact
- Cable Type : Unshielded/Shielded Cable
- Panel Cutout : 14.38X16.02 mm
- Termination Tool : Toolless, Not required Termination tool
- Color : Shielded - Metallic, Unshielded - Back, White, Blue, Yellow, Red, Other by request
PatchPanel 1RU 48 Port UTP/STP
Liên hệ
- Rack Type : EIA 310D, 19 Inch Rack Mount
- Rack Unit : 1RU
- Interface, Front : RJ45
- Total Ports : 48 Port
- Compatibility : HD family Keystone Modular jack UTP/STP
- Panel Style : Flat, and Foldable Angle
- Cable Type : Unshielded and Shielded
- Rear Cable Manager : 2 Rows, Integrated Individual Smart Clip Lock Rear Cable Management
- Color : Black
PatchPanel 1RU 24 Port Unloaded
Liên hệ
- Rack Type : EIA 310D, 19 Inch Rack Mount
- Rack Unit : 1RU
- Interface, Front : RJ45
- Total Ports : 24 Port
- Compatibility : HD family Keystone Modular jack UTP/STP
- Panel Style : Flat, and Foldable Angle
- Cable Type : Unshielded and Shielded
- Rear Cable Manager : Integrated Individual Smart Clip Lock Rear Cable Management
- Color : Black
PatchPanel 1/2 RU 24 Port Unloaded
Liên hệ
- Rack Type : EIA 310D, 19 Inch Rack Mount
- Rack Unit : ½ RU
- Interface, Front : RJ45
- Total Ports : 24 Port
- Compatibility : HD family Keystone Modular jack UTP/STP
- Panel Style : Flat Panel
- Cable Type : Unshielded and Shielded
- Rear Cable Manager : Integrated Individual Smart Clip Lock Rear Cable Management
- Color : Black
KeyStone Category 5e Jack 180° Tool-Less
Liên hệ
- Interface, Front : RJ45
- Interface, Rear : IDC Insulation Displacement Contact
- Cable Type : Unshielded/Shielded Cable
- Panel Cutout : 14.38X16.02 mm
- Termination Tool : Toolless, Not required Termination tool
- Color : Shielded - Metallic, Unshielded - Back, White, Blue, Yellow, Red, Other by request.
PatchCord Cat.5e Dual Boot F/UTP 26AWG 100 MHz
Liên hệ
- Size : 26AWG
- Type : Stranded bare copper
- Type : Solid PE
- Color : Blue/White, Orange/White, Green/White, Brown/White
- Overall shield: Aluminum Polyester Tape
- Type : LSZH/PVC
- RJ45 Modular Plug : 50 u gold plated contact
- Termination Coding : TIA 568-B
- Plug Housing : UL94V-0 rated clear polycarbonate
- Flame retardant : LSZH: IEC60332-1; IEC60754-1&2; IEC61034; PVC: IEC60332-1
