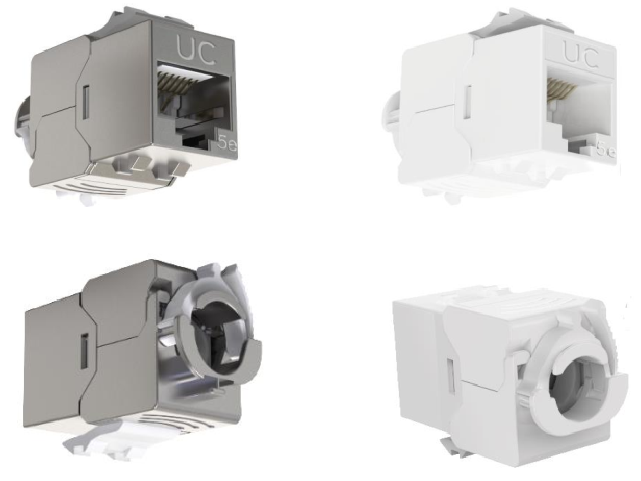

KeyStone Category 5e Jack 180° Tool-Less

  • Keystone Cat. 5e
  • Interface, Front : RJ45
  • Interface, Rear : IDC Insulation Displacement Contact
  • Cable Type : Unshielded/Shielded Cable
  • Panel Cutout : 14.38X16.02 mm
  • Termination Tool : Toolless, Not required Termination tool
  • Color : Shielded - Metallic, Unshielded - Back, White, Blue, Yellow, Red, Other by request.

Modular Jack Housing : Shielded, Zinc Alloy Electroplating 360° Shielded.

Unshielded, Fire Proof Polycarbonate

Housing Flame Rating : UL 94 V-0

Termination Blocks : Fire Proof Polycarbonate, UL 94 V-0

Pin Contact : Phosphor Bronze, 50µ Inch Gold Plating

PCB : Fire Proof Polycarbonate, UL 94 V-0

IDC Terminal Contact : Phosphor Bronze Tinned Plating

Smart Clip Lock : Fire Proof Polycarbonate, UL 94 V-0

Dimension (WXDXH) : 14.38X29.91X19.31 mm

Conductor Type : Solid | Stranded

Conductor Gauge : Solid 22–24 AWG

Conductor Gauge : Stranded 22-26 AWG

IDC Termination : 110 Insulation Displacement Contact (IDC), KRONE

IDC Durability : 250 times re-termination

Plug Insertion Life : 750 Mating Cycle

Plug Retention Force : 79 N

Wiring : T568A | T568B

Cable OD : 5.0 – 8.5mm

Smart Clip Lock : Integrated Smart Clip Lock, Re-Usable, Adjustable Cable Diameter
