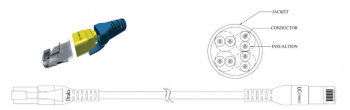

• Size : 24AWG
• Type : Stranded bare copper
• Type : Solid PE
• Color : Blue/White, Orange/White, Green/White, Brown/White
• Type : LSZH/PVC
• RJ45 Modular Plug : 50 u gold plated contact
• Termination Coding : TIA 568-B
• Plug Housing : UL94V-0 rated clear polycarbonate
• Flame retardant : LSZH: IEC60332-1; IEC60754-1&2; IEC61034; PVC: IEC60332-1

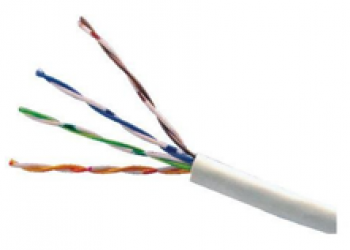

Category 5e
• Class D, link/channel up to 100MHz
• Up to 1000BASE-T
• Typical 24AWG Solid conductor size
• 25 watts carrying for POE applications
• Used primarily in premises.
• Unshielded and Shielded version
• PVC and LSZH Jacket
• Outdoor Jacket available

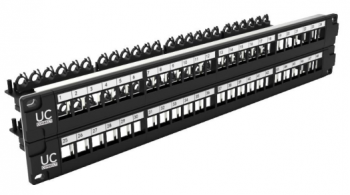

• Rack Type : EIA 310D, 19 Inch Rack Mount
• Rack Unit : 2 RU
• Interface, Front : RJ45
• Total Ports : 48 Port
• Compatibility : HD family Keystone Modular jack UTP/STP
• Panel Style : Flat Panel
• Cable Type : Unshielded and Shielded
• Rear Cable Manager : 2 Rows Integrated Individual Smart Clip Lock Rear Cable Management
• Color : Black

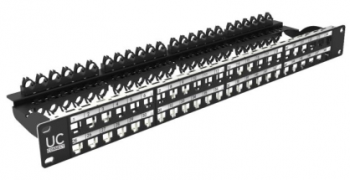

• Rack Type : EIA 310D, 19 Inch Rack Mount
• Rack Unit : 1RU
• Interface, Front : RJ45
• Total Ports : 48 Port
• Compatibility : HD family Keystone Modular jack UTP/STP
• Panel Style : Flat, and Foldable Angle
• Cable Type : Unshielded and Shielded
• Rear Cable Manager : 2 Rows, Integrated Individual Smart Clip Lock Rear Cable Management
• Color : Black

• Rack Type : EIA 310D, 19 Inch Rack Mount
• Rack Unit : 1RU
• Interface, Front : RJ45
• Total Ports : 24 Port
• Compatibility : HD family Keystone Modular jack UTP/STP
• Panel Style : Flat, and Foldable Angle
• Cable Type : Unshielded and Shielded
• Rear Cable Manager : Integrated Individual Smart Clip Lock Rear Cable Management
• Color : Black

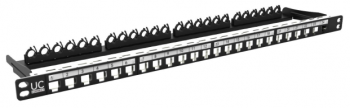

• Rack Type : EIA 310D, 19 Inch Rack Mount
• Rack Unit : ½ RU
• Interface, Front : RJ45
• Total Ports : 24 Port
• Compatibility : HD family Keystone Modular jack UTP/STP
• Panel Style : Flat Panel
• Cable Type : Unshielded and Shielded
• Rear Cable Manager : Integrated Individual Smart Clip Lock Rear Cable Management
• Color : Black

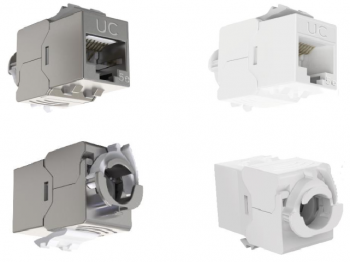

• Interface, Front : RJ45
• Interface, Rear : IDC Insulation Displacement Contact
• Cable Type : Unshielded/Shielded Cable
• Panel Cutout : 14.38X16.02 mm
• Termination Tool : Toolless, Not required Termination tool
• Color : Shielded - Metallic, Unshielded - Back, White, Blue, Yellow, Red, Other by request.

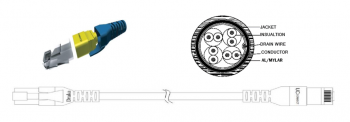

• Size : 26AWG
• Type : Stranded bare copper
• Type : Solid PE
• Color : Blue/White, Orange/White, Green/White, Brown/White
• Overall shield: Aluminum Polyester Tape
• Type : LSZH/PVC
• RJ45 Modular Plug : 50 u gold plated contact
• Termination Coding : TIA 568-B
• Plug Housing : UL94V-0 rated clear polycarbonate
• Flame retardant : LSZH: IEC60332-1; IEC60754-1&2; IEC61034; PVC: IEC60332-1
