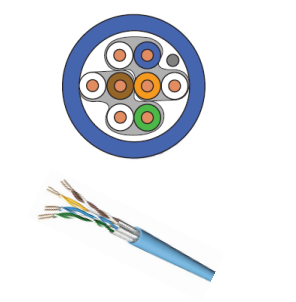

Category 6A
- UC500 Cat. 6A
Category 6a
• Class Ea, link/channel up to 500MHz
• Up to 10GBASE-T, 100m
• Typical 23AWG Solid conductor size
• High alien-Cross-talk performance in higher freq.
• Used primarily in enterprise and datacenters

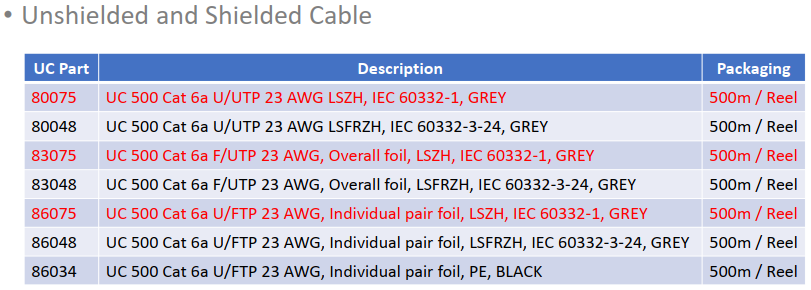

• Unshielded and Shielded version
• CM and LSZH jacket
PatchCord Cat.6A Dual Boot U/UTP 24AWG 500 MHz
Liên hệ
- Size: 24AWG
- Type: Stranded bare copper
- Type: PE
- Color: Blue/White, Orange/White, Green/White, Brown/White
- Type: LSZH
- RJ45 Modular Plug: 50 u gold plated contact
- Termination Coding: TIA 568-B
- Plug Housing: UL94V-0 rated clear polycarbonate
- Flame retardant LSZH: IEC60332-1; IEC60754-1&2; IEC61034
KeyStone Category 6A Jack 180 Tool-Less
Liên hệ
- Interface, Front : RJ45
- Interface, Rear : IDC Insulation Displacement Contact
- Cable Type : Unshielded/Shielded Cable
- Panel Cutout : 14.38X16.02 mm
- Termination Tool : Toolless, Not required Termination tool
- Color : Shielded - Metallic, Unshielded - Back, White, Blue, Yellow, Red, Other by request.
PatchPanel 2RU 48 Port Unloaded
Liên hệ
- Rack Type : EIA 310D, 19 Inch Rack Mount
- Rack Unit : 2 RU
- Interface, Front : RJ45
- Total Ports : 48 Port
- Compatibility : HD family Keystone Modular jack UTP/STP
- Panel Style : Flat Panel
- Cable Type : Unshielded and Shielded
- Rear Cable Manager : 2 Rows Integrated Individual Smart Clip Lock Rear Cable Management
- Color : Black
PatchPanel 1RU 48 Port UTP/STP
Liên hệ
- Rack Type : EIA 310D, 19 Inch Rack Mount
- Rack Unit : 1RU
- Interface, Front : RJ45
- Total Ports : 48 Port
- Compatibility : HD family Keystone Modular jack UTP/STP
- Panel Style : Flat, and Foldable Angle
- Cable Type : Unshielded and Shielded
- Rear Cable Manager : 2 Rows, Integrated Individual Smart Clip Lock Rear Cable Management
- Color : Black
PatchPanel 1RU 24 Port Unloaded
Liên hệ
- Rack Type : EIA 310D, 19 Inch Rack Mount
- Rack Unit : 1RU
- Interface, Front : RJ45
- Total Ports : 24 Port
- Compatibility : HD family Keystone Modular jack UTP/STP
- Panel Style : Flat, and Foldable Angle
- Cable Type : Unshielded and Shielded
- Rear Cable Manager : Integrated Individual Smart Clip Lock Rear Cable Management
- Color : Black
PatchPanel 1/2 RU 24 Port Unloaded
Liên hệ
- Rack Type : EIA 310D, 19 Inch Rack Mount
- Rack Unit : ½ RU
- Interface, Front : RJ45
- Total Ports : 24 Port
- Compatibility : HD family Keystone Modular jack UTP/STP
- Panel Style : Flat Panel
- Cable Type : Unshielded and Shielded
- Rear Cable Manager : Integrated Individual Smart Clip Lock Rear Cable Management
- Color : Black
