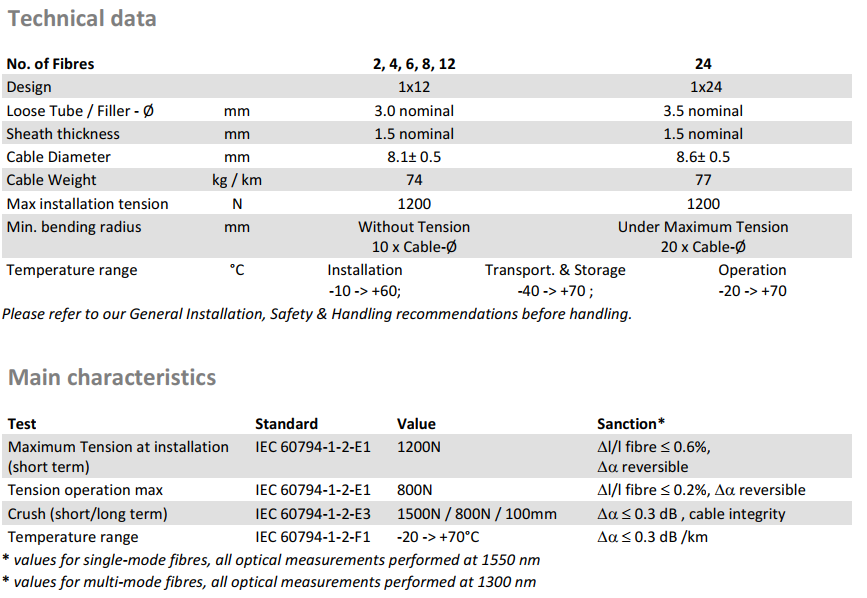

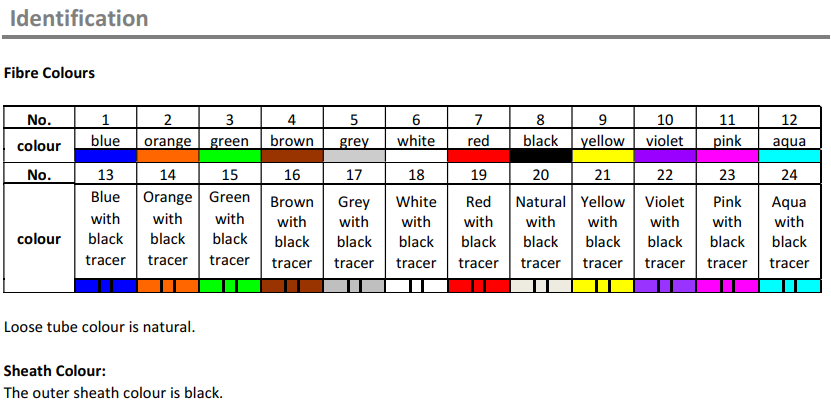

UCFIBRE™ 2-24 Core UT Series, Light Armoured, Uni-tube Cable, PE Sheath
- UT 2-24 Series
Unitube: thermoplastic material, containing up to 24 fibres and filled with a
suitable water tightness compound.
Peripheral Strength Elements: Aramid yarns.
Armour: corrugated steel tape.
Outer Sheath: PE.
Suitable for Direct Buried and Outdoor Installations
UCFIBRE™ 2-144 Core LTZMSM, Double Sheaths, Armoured Cable, LSZH, Dry Core
Liên hệ
Central strength member (CSM): steel wire with plastic coating when
needed.
Tube: thermoplastic material, containing up to 12 optical fibres and
filled with a suitable water tightness compound.
Stranding: The required numbers of elements (tubes or fillers) are SZ
stranded around the central strength member.
Longitudinal Water Tightness: WB tape and water blocking yarn (dry
core)
Inner Sheath: LSZH.
Armour: Corrugated steel tape.
Outer Sheath: LSZH. Compliant to IEC60332-3-24, IEC60332-1,
IEC60754-1/2, IEC61034-2, UL1581 UV Resistant.
Suitable for Direct Buried or Indoor/Outdoor Installation.
UCFIBRE™ 2-24 Core UTM Series, Light Armoured, Uni-tube Cable, LSZH Sheath
Liên hệ
Unitube: thermoplastic material, containing up to 24 fibres and filled
with a suitable water tightness compound.
Peripheral Strength Elements: Aramid yarns.
Armour: corrugated steel tape.
Outer Sheath: LSZH Compliant to IEC60332-3-24, IEC60332-1, IEC60754-
1/2, IEC61034-2, UL1581 UV Resistant.
Suitable for Duct Buried or Indoor/Outdoor Installation
